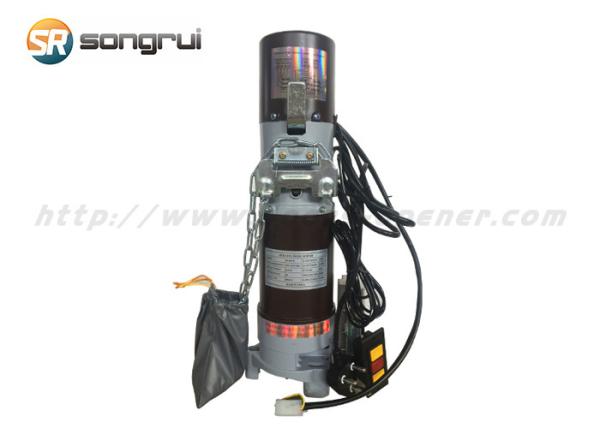

300KG Roller Shutter Door Motor

Name: 300KG Roller Shutter Door Motor
Brand: SONGRUI
Price: 1 USD

Brand Name : SONGRUI

Model Number : JM300

Certification : CE

Place of Origin : China

MOQ : 50 SETS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 Set/Sets per Month

Delivery Time : 5-8 WORK DAYS

Product Name : tubular motor roller shutter

Type : JM300

Power supply : 220V 50Hz

Power : 200w

Max. lifting : 300kg

Max. operating range : 4m

Contact Now

Garage Rolling Door Opener Garage Door Opener JM300

Main Features:

1. Max upgrade weight: 1500KG
2. Max upgrade height: 9M
3. Short-time work system, continuous working not exceeding 5 mines.
4. Rolling Door Opener are using 220V or 380V AC power supply;
5. Can be matched with manually lock button and security locking;

6. Shell: aluminum alloy, solid and light;

7. Remote control: optional rolling code or fix code;
8. It is convenient to manual operation when power failed;

9. Thermal protection device could protect rolling door from damage and motor burned;
10. Operations are stable, low noise, small vibration.

Main Technical Parameters:

Model	Power(w)	Max. lifting (kg)	RATED LOAD		Max. operating range(m)	Chain (ANSI standard)
Model	Power(w)	Max. lifting (kg)	Output torque(n/m)	Rotate speed(r/min)	Max. operating range(m)	Chain (ANSI standard)
220V/50Hz
JM-300-1P	200	300	168	4.6	4.5	08B
JM-500-1P	250	500	412	5.2	6	10A
JM-600-1P	370	600	412	4.6	6	10A
JM-800-1P	400	800	647	4.4	9	10A
JM-1000-1P	400	1000	809	4.4	9	12A
380V/50Hz
JM-1000-3P	400	1000	809	4.4	9	12A
JM-1500-3P	600	1500	1617	5.2	9	12A
